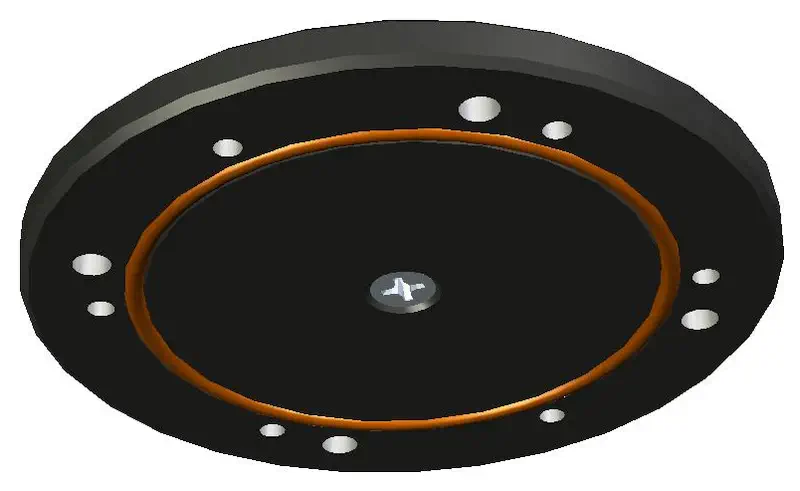

NATO 4-Hole Mount/NATO 6-Hole Mount Antenna Accessory
The ACC-0018, NATO 4-Hole Mount and NATO 6-Hole Mount, Antenna Accessory is used to directly fasten any single 1/4"-20 mounted antenna and accessory featured in this catalog, to the chassis of a NATO standard hole pattern vehicle or metal structure. This Vehicle Mount installs with four M8 screws or six M6 screws.
This Antenna Mount is available in various colors, including Black, White, Olive Drab and Desert Sand. Options are available for the holes to be threaded (for bottom mounting/chassis is unthreaded), or the holes to be through (for top mounting/chassis has threads).
ACC-0018 Technical Specifications:
- Dimensions: 139 mm (5.5") OD x 9.5 mm (0.38"), not including center 1/4"-20 threaded protrusion
- Hole Spacings: 114.2 mm (4.50") or 111.0 mm (4.37")
- Mounting Hardware: 4x M8 screws or 6x M6 screws
- Weight: 350 g (0.75 lbs)
