Thuraya Antenna with Black Cable
Thuraya Antenna with Black Cable
Thuraya Antenna with Black Cable
Thuraya Antenna with Blue Cable
UC-1614-341L with Side SMA F
Thuraya Antenna with Flange Base
UC-1614-341L-LIGHT Lightweight Thuraya Antenna

Thuraya antenna, model UC-1614-341L

Item #: UC-1614-341L-RG316
Availability: approx. 2 weeks
Usually ships In approx. 2 weeks
Price: $117.19

    Base/Flange type:
    Connector type/gender:

    Update price
    Quantity:

      Quantity Count

      Price Each

    1-9$117.19
    10-99$110.19
    100+$98.19

    Model UC-1614-341L Data

    Thuraya Antenna Description

    Model UC-1614-341L, Thuraya Antenna, is a Quadrifilar Helix antenna measuring 4 cm/1.5" OD x 11 cm/4.5" H. It is designed for use on the Thuraya satellite network, covering much of Europe, Africa, the Middle East and part of Asia: Thuraya Coverage Map. This product may also be used as a Globalstar uplink antenna (Transmit band only), or as a combination Thuraya + Globalstar uplink antenna system.

    For a comparable worldwide solution, consider the Iridium Satellite System. Visit our (Iridium Antenna page).

    UC-1614-341L Variants

    For embedded and weight sensitive applications (such as self-buoyant air and water platforms, like balloons and buoys), we offer a 30 gram (1 oz) lightweight version of the Thuraya antenna: the UL-1614-341L-LIGHT (select from above Base/Flange drop down menu). It is enclosed in a light housing, measuring 27.5 mm (1.08") OD x 99 mm (3.9") L, with an SMA Female connector at its bottom center.


    Antenna Specifications

    • Frequency range: 1525-1560, 1625-1660 MHz
    • Coverage: Hemispherical
    • Polarization: Left-Handed, Circular (AR 3 dB)

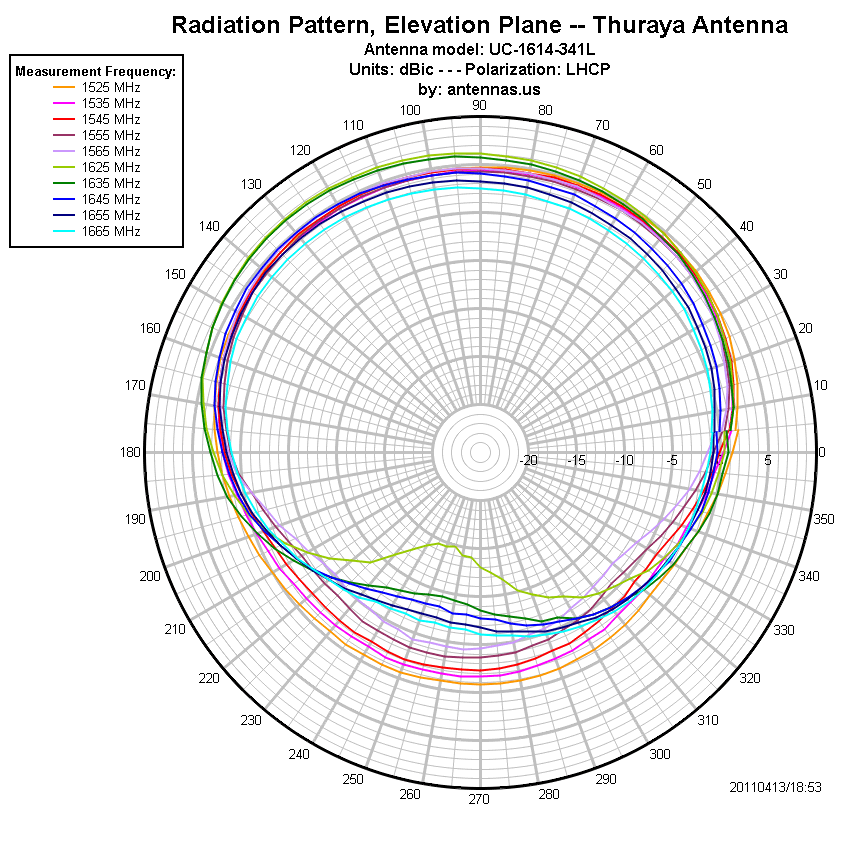

    • Gain: +2 dBic - Elevation pattern
    • Nominal Impedance: 50 ohm (RF)
    • Input Power: 1 Watt CW

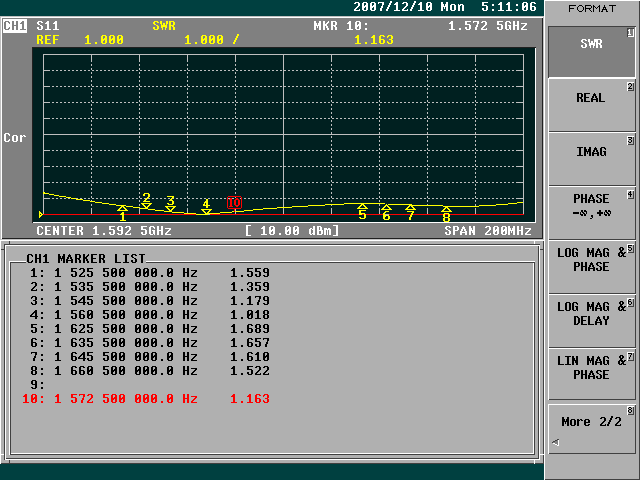

    • VSWR: 2.0 GRAPH
    • Connector: Selectable at time of purchase (SMA M or MCX M) on a low loss coaxial cable
    • Dimensions:
      • Housing 4 cm (1.5") OD x 11 cm (4.5") h
      • Bottom flange 5 cm (2") OD x 13 mm (0.5") h
    • Mounting: 1 screw, 1/4"-20
    • Operating Temperatures: -40°C to +85°C
    • Weight: 250 g / 0.5 lbs
    • Shipping Weight: 300 g / 0.6 lbs

    NOTES:
    • Does not require a ground plane for normal operation
    • Magnetic mount, Suction cup mount and extension/adapter cables available (see "More Information" tab)


    Our Thuraya antenna is compatible with the following Antenna Accessories:



    Recommended Cable Assemblies

    Specify desired length from drop-down menu

    Specify desired connector for the device end

    Specifications, Availability and Prices are subject to change without notice
