    UHF Satcom MUOS Diplexer description

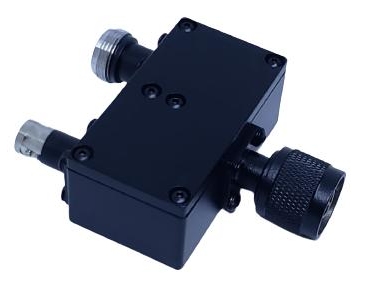

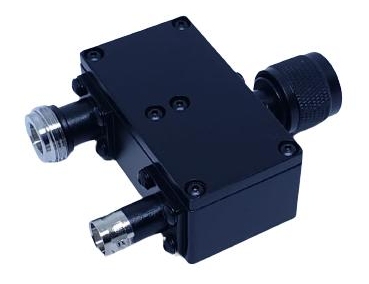

    DPLU-0310-680 MUOS Diplexer, isolates new MUOS Downlink (RX) signals from Uplink transmitted energy. It also manages Legacy and Modern waveforms available from MUOS payloads, enabling a single antenna to support all UHF Satcom modes supported by existing field radios. Currently, a separate RF connector is required for the MUOS WCDMA downlink. This Diplexer supports such requirement.

    Diplexers are bidirectional and linear. This means that the direction of a signal traversing it, transmit/outgoing or receive/incoming, are both supported simultaneously. Signals passing the device are not generally distorted, other than in their relative amplitude, phase and group delay, so long as the power levels are within the specified values. The DPLU-0310-680 has a fairly flat dispersion and group delay within the active spectrum of UHF Satcom.

    DPLU-0310-680 Technical Specifications

    • MUOS Transmit/Legacy Port: 240 - 320 MHz
    • MUOS Receive Port: 360 - 380 MHz

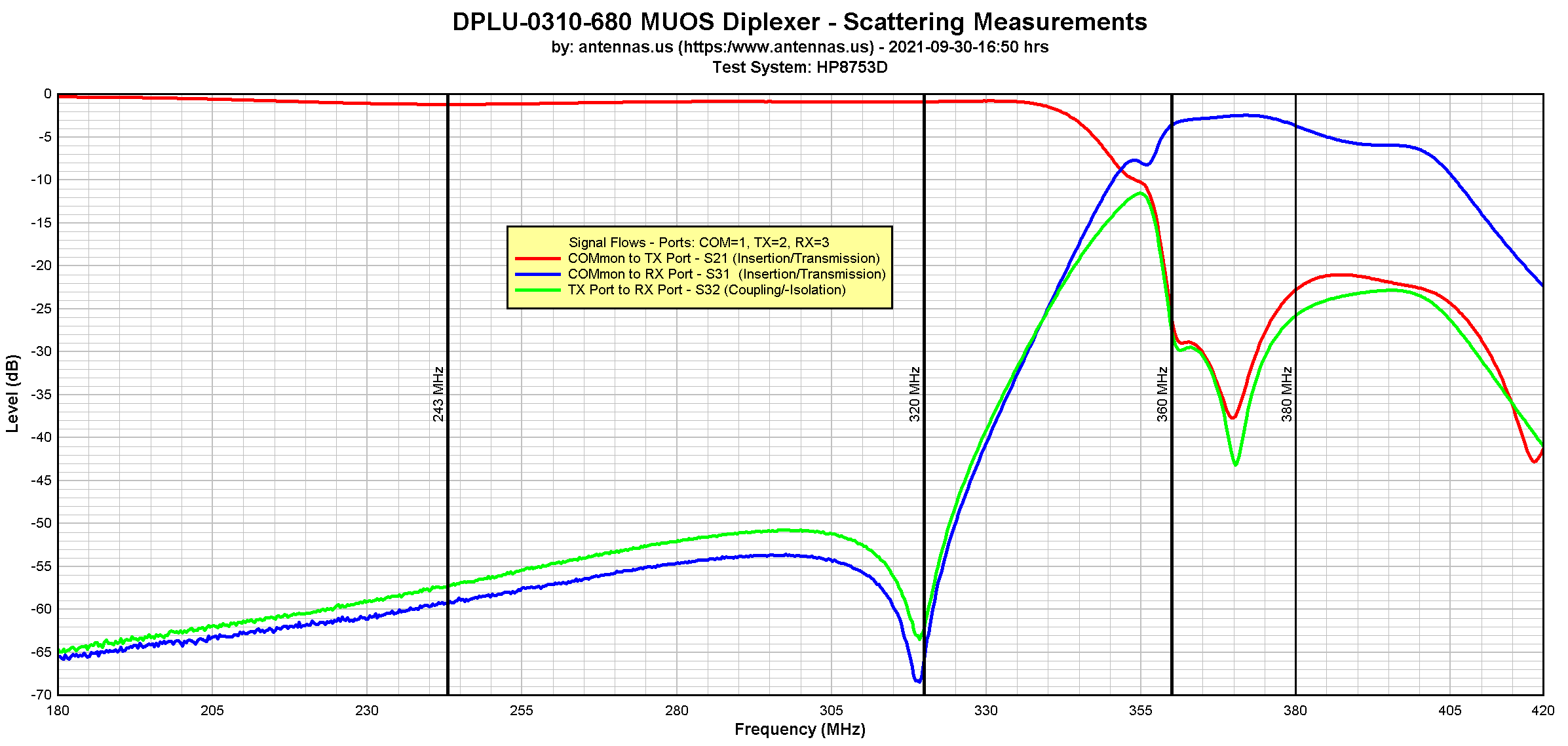

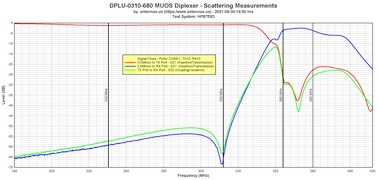

    • Insertion Loss: TX-Legacy <2 dB (1 dB typical) / RX ~ 3 dB (+1/-3 dB across spectrum)
    • Isolation between MUOS TX/Legacy to RX Ports: >45 dB (240-320 MHz)
    • Nominal Impedance: 50 ohm (RF) IN/OUT
    • RF Power Handling: 50 Watts (+47 dBm) Maximum

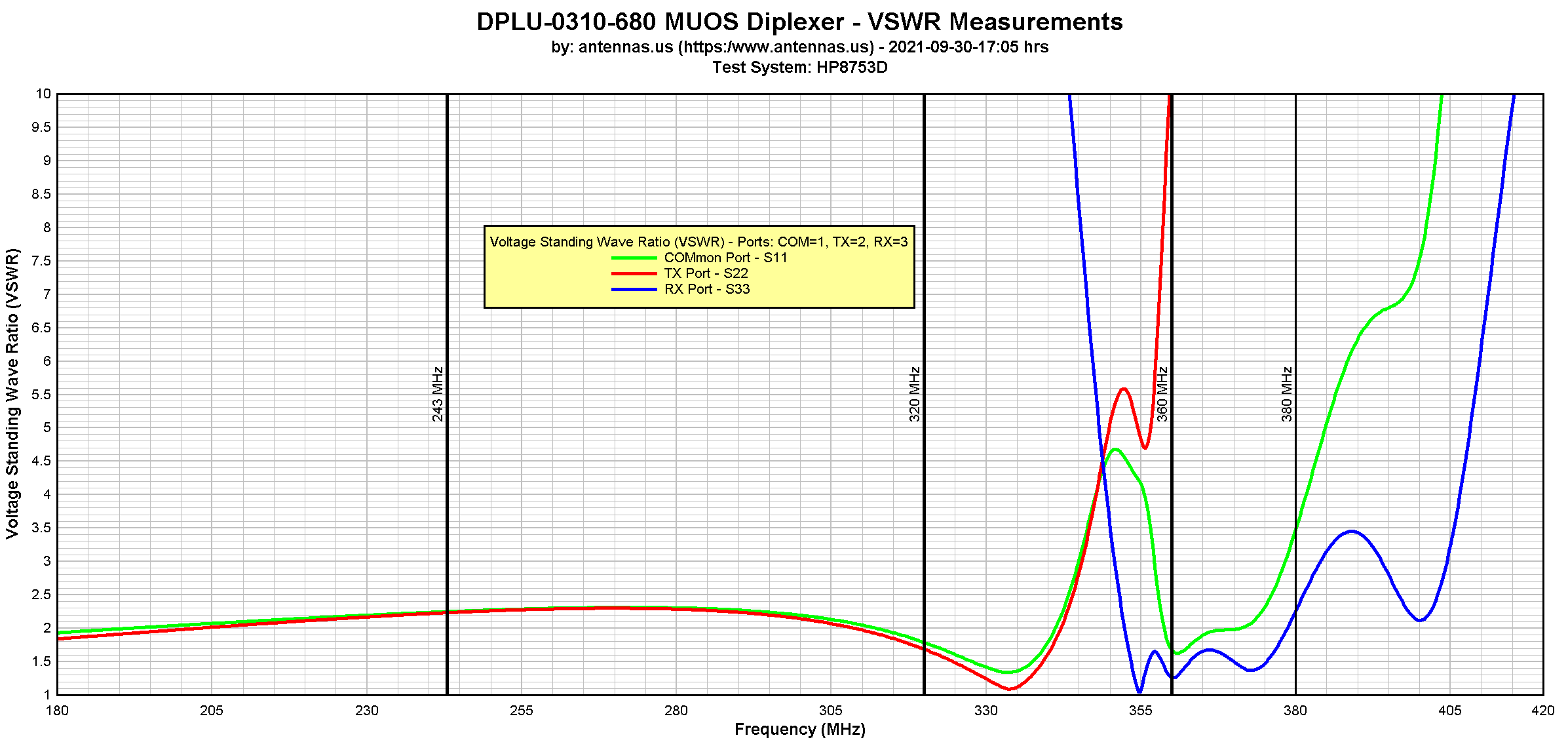

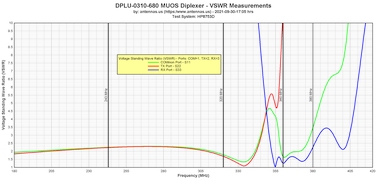

    • VSWR: MUOS TX-Legacy <2.5 / MUOS RX <3.0
    • Connectors:
      • N Male (COMmon)
      • N Female (MUOS TX/Legacy)
      • BNC/TNC Female (MUOS RX)
      • - - or - -

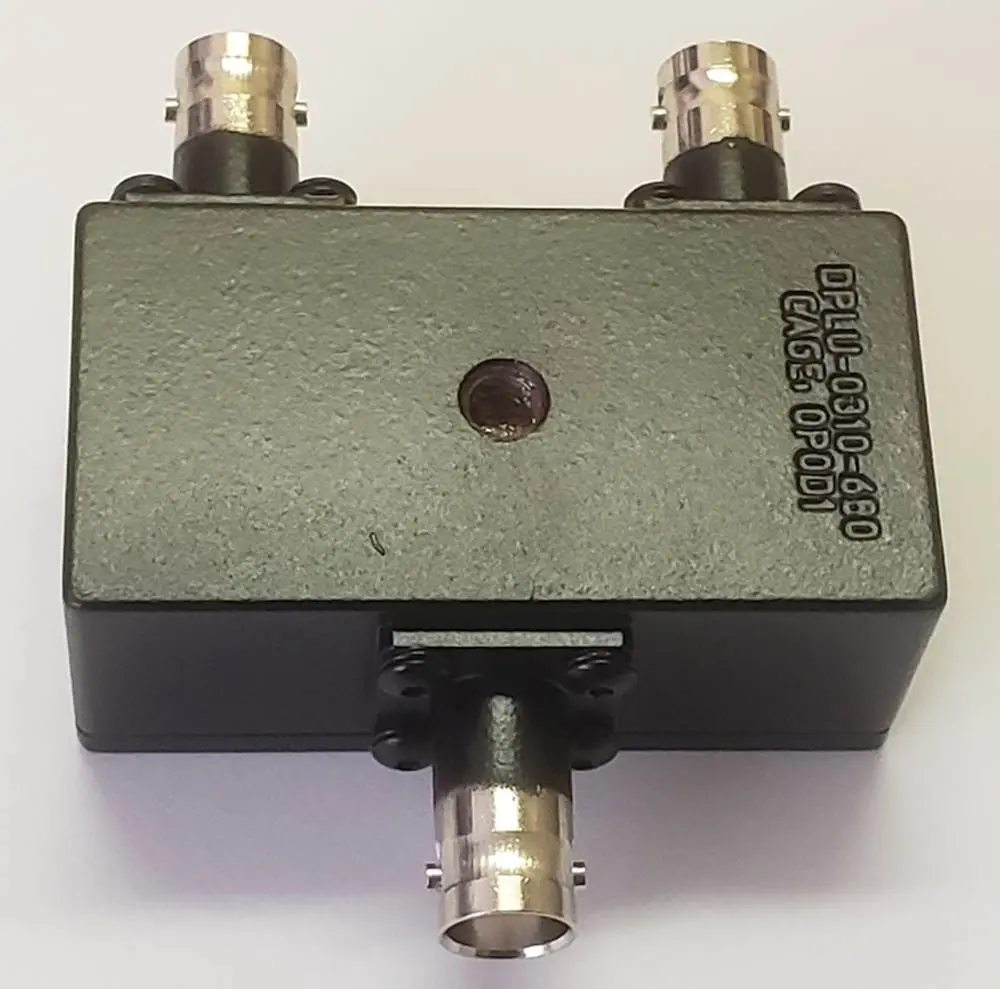

      • or all 3 connectors above BNC Female (-3BNCF version)
    • Dimensions: 61 mm (2.4") L x 33 mm (1.3") W x 25 mm (1.0") H, not including connectors
    • Mounting: N Male Connector or shallow single 1/4"-20 screw at bottom of housing
    • Operating Temperatures: -40°C to +85°C
    • Weight: 180 g / 6.3 oz
    • Color: Black/Silver (other colors available)


    Availability, specifications & prices subject to change without notice
