Original antennas made in the US, by us, for the greater World

Price: $60.23

Typical leadtime if item is not in stock: approx. 2 weeks (call for stock status)


    Quantity:

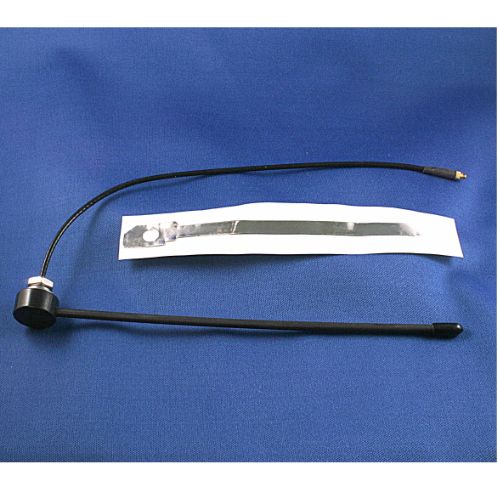

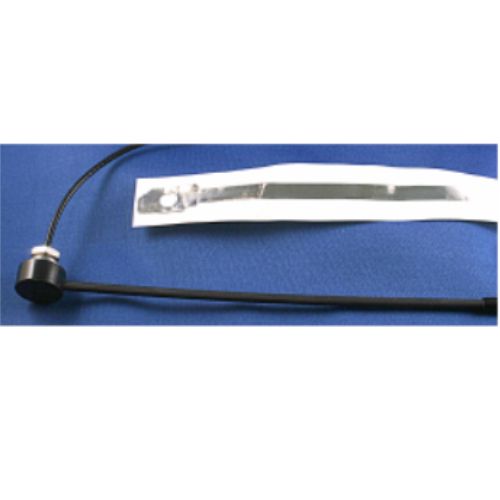

    Flexible whip antenna on threaded mount for portable and fixed products with MMCX Male connector. Includes a self-adhesive Aluminum counterpoise strip for installation inside a plastic housing.
    Frequency: 300-320 MHz
    Coverage: Omni directional (azimuth)
    Polarization: Linear
    Gain: +1 dBil
    Ground Plane: Requires a ground plane
    Nominal Impedance: 50 ohm (RF), Open Circuit (DC)
    VSWR: 2.0
    Dimensions: 26 cm (10") H
    Connector: MMCX, Male, on RG316
    Mounting: 1/4"-20 threaded, Nickel-Tin plated Brass
    Hardware: Flat Washer, Lock Washer and Nut, all included
    For more technical information see Datasheet
    Availability, specifications & prices subject to change without notice
