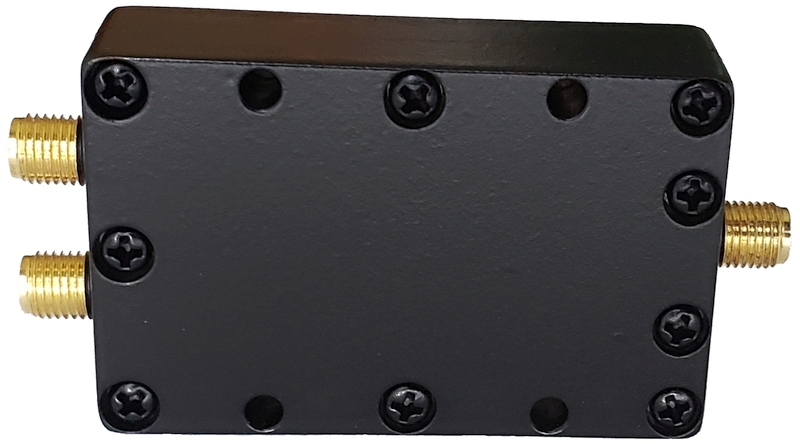

ADS-B Splitter / L-band 2-way Combiner/Splitter
L-band, two-way, 0° RF Splitter/Combiner designed to distribute dual band ADS-B signals to two receivers, often Software Defined Receivers, like a pair of RTL-SDRs. Intended to be the final stage of a full ADS-B upcoming receiving station kit (UL-ADSB-KIT), the Splitter's job is to deliver DC power to an outdoor ADS-B Low Noise Amplifier, like our LNAU-1030-648 via a coaxial cable. At the same time, and through the same coaxial cable, ADS-B signals from nearby aircraft emitting at either ADS-B frequency: 1090 MHz for high altitude aircraft, such as passenger and cargo airplanes and 978 MHz for low-flying craft, such as private propeller aircraft and commercial Unmanned Drones/UAV/UAS (Unmanned Air Vehicles), are separated for delivery to two dedicated receivers. Each receiver is tuned to each of the 2 frequencies above. Aircraft signals are normally collected by an external antenna (such as our UL-1032-701), and may be amplified and filtered by an LNA (preferred for performance).
SPLU-1032-710 Technical Specifications
- Frequency range: 978 MHz/1030 MHz/1090 MHz, useable 700-1400 MHz
- Phase difference between ports: 0° nominal
- Nominal Impedance: 50 ohm (RF) / Open Circuit (DC) (DC Pass option)
- Input Power: 25 Watts CW Maximum
- VSWR: 2.0 Maximum

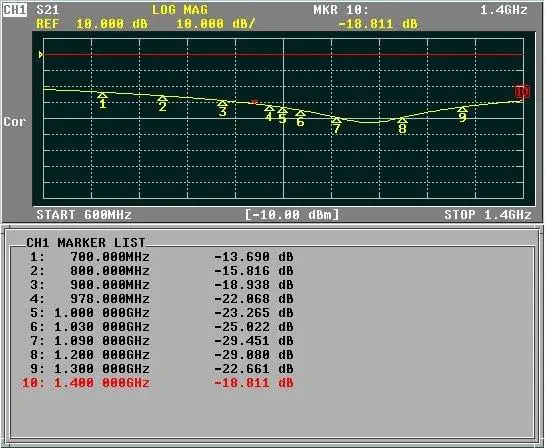

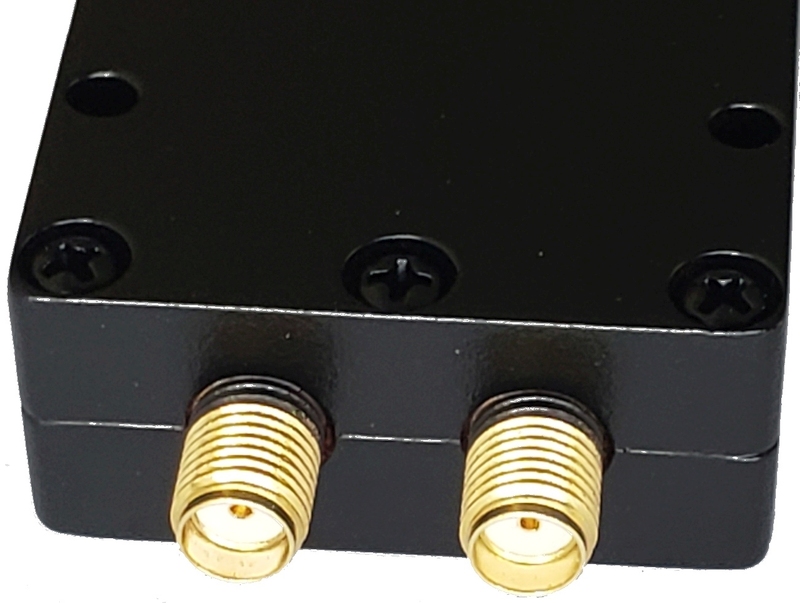

- Connector: SMA Female on all ports

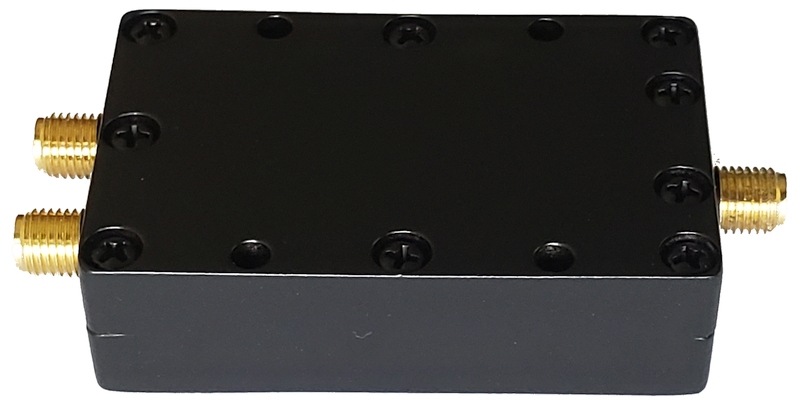

- Dimensions: 5.4 cm (2.13") L x 3.2 cm (1.25") W x 1.6 cm (0.63") h, not including connectors
- Mounting: 2-4 screws, size #4-40 or M2.5
- Operating Temperatures: -40°C to +85°C
- Weight: 150 g (0.35 lbs)
NOTES:
- Specifications and prices are subject to change without notice

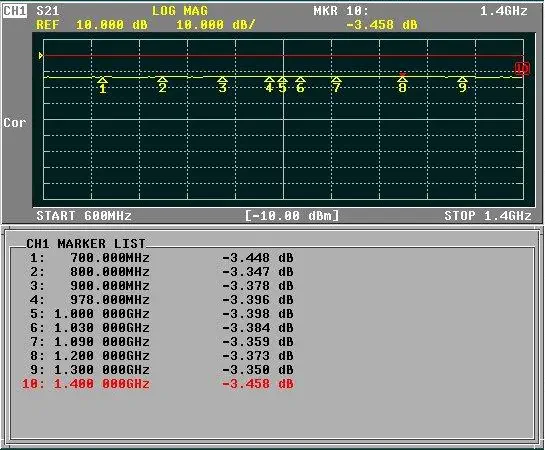

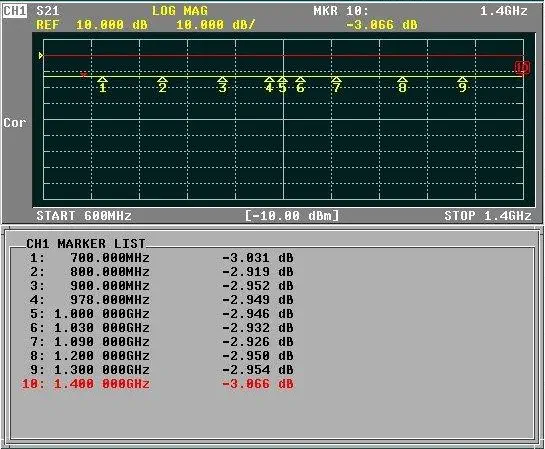

- Ideal transfer for a power splitter is half the power at each output port, or -3.0 dB at each output port
