    ACC-E328M Elevation over Azimuth Mast Mount description

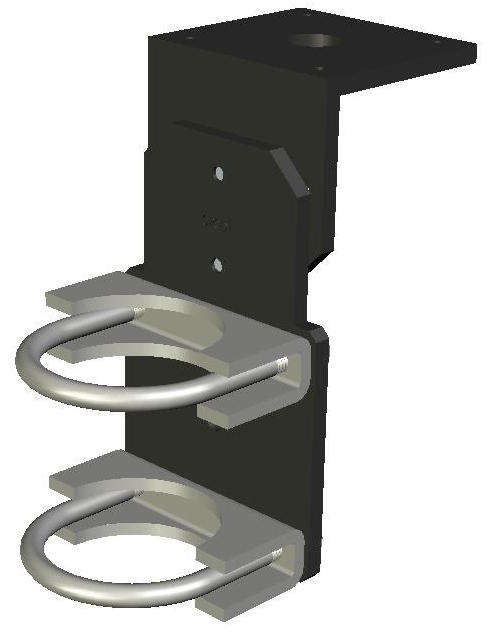

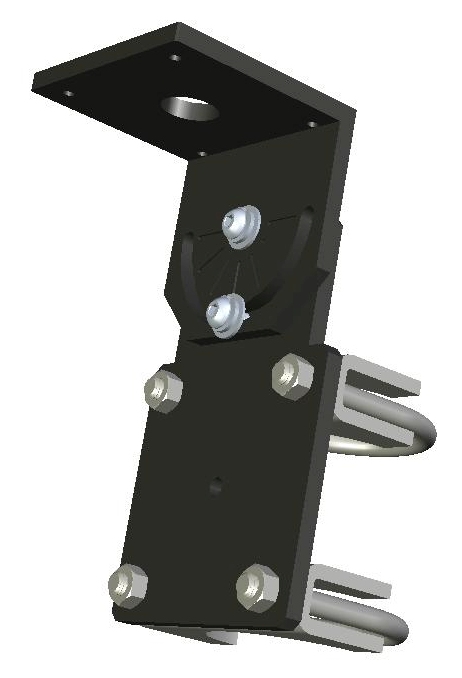

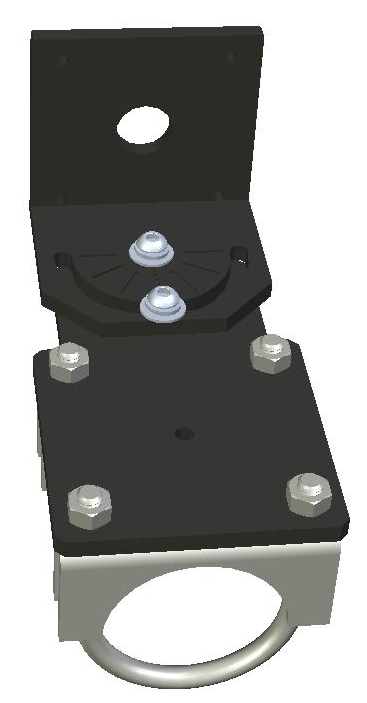

    EL/AZ Mast Mount for all -328/-513/-531 series UHF Satellite Antennas in our catalog. The Mount is comprised of two separable parts: a Mounting Plate and a Mast Adapter. The Mounting Plate is specific to -328, -513 & -531 (UHF) devices, containing 4 threaded holes matching the antenna's bolt circle. The Mast Adapter is fairly universal, as it is compatible with many other of our products. Both parts are made of structural 6061-T6 grade Aluminum.

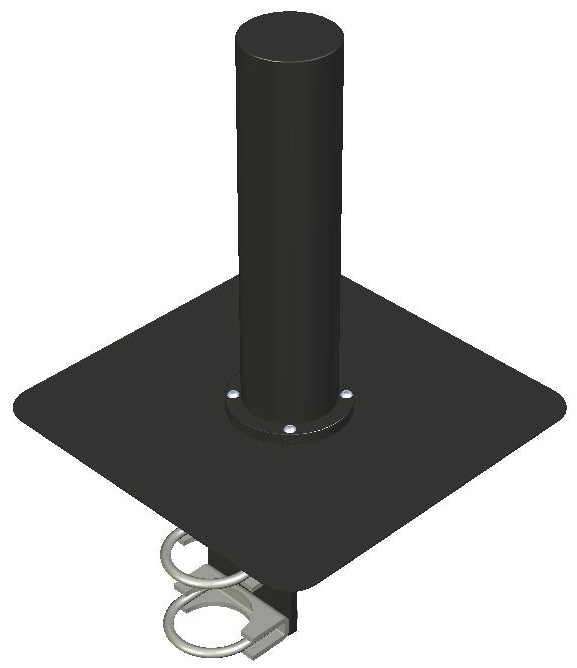

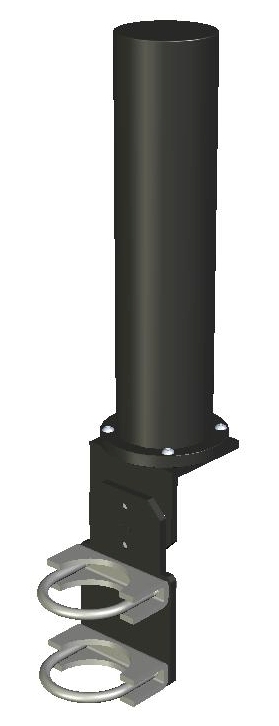

    The ACC-E328M Elevation over Azimuth Mast Mount is used to install the target antenna on a mast structure with an outside diameter of up to 57 mm (2.25"). The Mast Mount includes all needed Stainless Steel hardware to securely fasten the target antenna.

    You will need a 3/32" (2.5 mm) and a 9/64" (3.0 mm) Allen wrench to tighten the Mount's screws. If you do not have these wrenches, you may add them as an option via the dropdown menu above.

    NOTE: Although not required, we encourage applying RTV to the bottom surface of the antenna and over the connector interface for additional weatherproofing under all conditions.
