ACC-A328M Mast Mount description

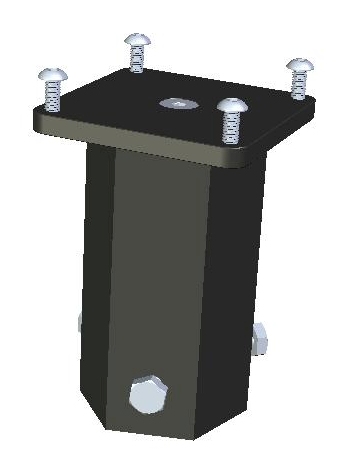

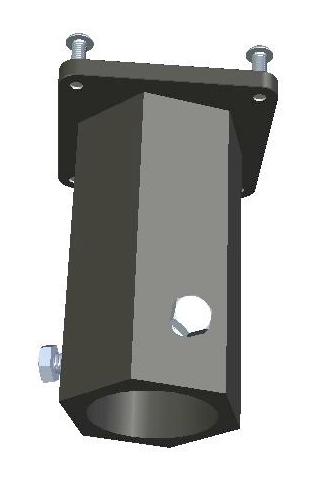

Mast Mount for all -328/-513 series UHF Satellite Antennas in our catalog. The Mount is comprised of two separable parts: a Mounting Plate and a Mast Adapter. The Mounting Plate is specific to -328 & -513 devices, containing 4 threaded holes matching the antenna's bolt circle. The Mast Adapter is fairly universal, as it is compatible with many other of our products. Both parts are made of structural 6061-T6 grade Aluminum.

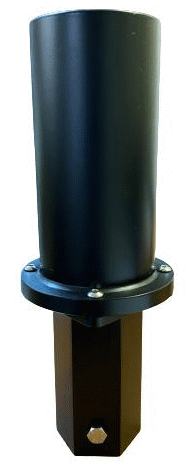

The ACC-A328M Mast Mount is used to install the target antenna on a mast structure with an outside diameter of up to 40 mm (1.57"). The Mast Mount includes all needed Stainless Steel hardware: three 1/4"-20 Hex Bolts, four #10-32 x 5/8" and a 1/4"-20 Flat Screw, to securely fasten the target antenna.
You will need a 3/32" (2.5 mm) and a 9/64" (3.0 mm) Allen wrench to tighten the Mount's screws. If you do not have these wrenches, you may add them as an option via the dropdown menu above.
NOTE: Although not required, we encourage applying RTV to the hexagonal Silver interface surface for additional grip under all conditions.
