    UL-2002-D640, Rugged +5 dBil L/S Band Omnidirectional Antenna (1.6-1.9/2.0-2.5 GHz)

    Leadtime: 2-4 weeks ARO

    This Omni antenna was designed for applications where a rugged, dual-band, high-gain omnidirectional antenna is required. For example, for UAV telemetry, long range LOS data and general wideband communications. This product can mount directly onto the connector of a radio set. It has a spring base enabling its use in portable and vehicle mounted applications. The UL-2002-D640 was designed to meet IP67 requirements. It may be submerged in water.

    This antenna provides a DC short circuit to help protect radio electronics connected to it from electrostatic discharge. At its UHFoperating frequencies of 1.6-1.9 GHz and 2.0-2.5 GHz, the nominal impedance is 50 ohm, with a maximum VSWR of 3.




    TECHNICAL SPECIFICATIONS
    • Frequency range: 1.6-1.9 GHz and 2.0-2.5 GHz
    • Coverage: Omni-directional, low azimuthal ripple (1 dB)
    • Polarization: Linear, Vertical
    • Peak Gain: +5 dBil
    • Nominal Impedance: 50 ohm (RF), Short Circuit (DC)
    • Input Power: 25 Watts CW (higher power available by special order)

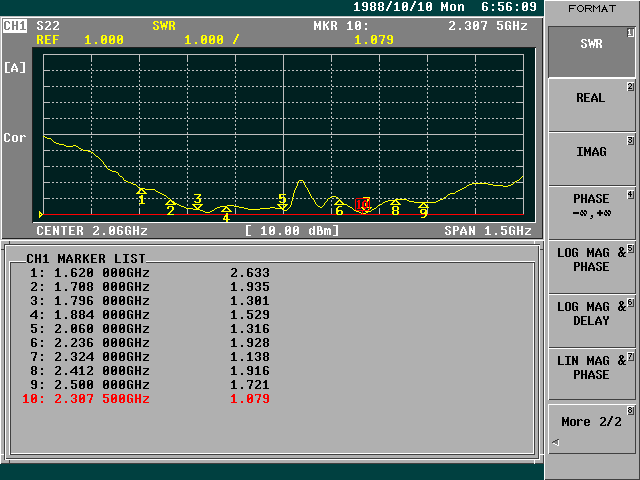

    • VSWR: 3.0 over 90% of band GRAPH
    • Connector: N, Male
    • Dimensions: 3.2 cm (1.25") OD x 38 cm (15") L
    • Mounting: direct, connector
    • Operating Temperatures: -40C to +85C
    • Weight: 0.8 kg / 1.7 lb
    • Shipping Weight: 0.9 kg / 2 lbs

    NOTES:
    • Self-contained, does not require a ground plane
    • Specifications and prices are subject to change without notice
