CP Flat Panel Surveillance Antenna
CP Flat Panel Surveillance Antenna

UC-350A-B511, Circularly Polarized (CP) Surveillance Antenna, 0.7-7.0 GHz

Price: $2,400.23

Typical leadtime if item is not in stock: approx. 3-4 weeks (call for stock status)

    Quantity:

    Quantity

    		1-910+

     Price Each

    		$2,400.23$1,855.23

    EXPORT CONTROLS APPLICABLE
    Leadtime: 4 Weeks ARO


    TECHNICAL SPECIFICATIONS:
    • Frequency range: 0.7-7.0 GHz
    • Coverage: Broadside
    • Polarization: Circular, RHCP or LHCP, depending on mounting orientation
    • Gain: -2 to +2 dBic
    • Nominal Impedance: 50 ohm (RF), Short Circuit (DC)*

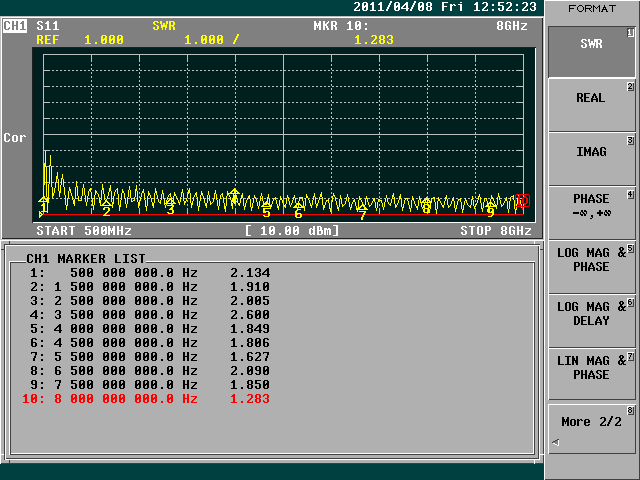

    • VSWR: 3.0 GRAPH
    • Connector: SMA, Female
    • Size: 31 cm (12") x 31 cm (12") x 1 cm (.4")

    NOTES:
    • Does not require a ground plane
    • * We can provide this antenna with a DC Open Circuit impedance


    Availability, specifications and prices are subject to change without notice
