UHF LOS Antenna (UL-3001-456)
UHF LOS Antenna, 225-450 MHz

UL-3001-456, LOS VHF/UHF Antenna (225-450 MHz), N Male, Spring Base

Price: $483.26

Typical leadtime if item is not in stock: Approx. 3-4 weeks (call for stock status)


    Product Pricing Table

    Quantity

    		1-910-99100+

     Price Each

    		$483.26$463.26$424.26

    UL-3001-456, 35" Spring Base VHF/UHF Line Of Sight (LOS)/SATCOM Antenna (225-450 MHz)

    Leadtime: 4 weeks ARO

    SPECIFICATIONS:

    • Frequency range: 250-450 MHz
    • Coverage: Omni-directional, low azimuthal ripple (1 dB)
    • Polarization: Linear, Vertical
    • Peak Gain: 0 dBil
    • Nominal Impedance: 50 ohm (RF), Short Circuit (DC)
    • Input Power: 50 Watts CW

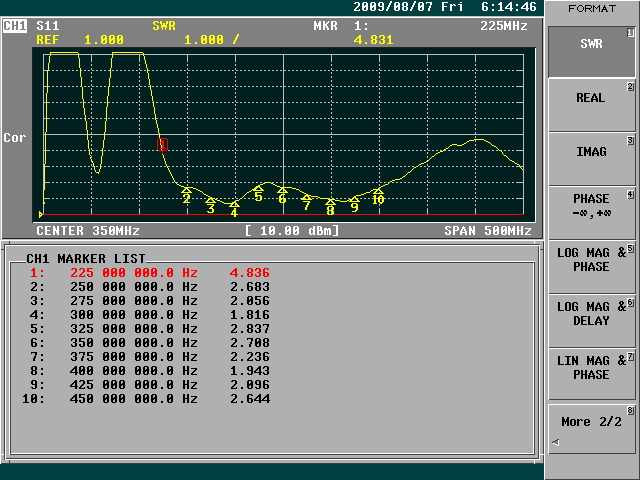

    • VSWR: 3.0 over 90% of band GRAPH
    • Dimensions: 3.2 cm (1.25") OD x 89 cm (35") L
    • Mounting: direct, connector
    • Operating Temperatures: -40C to +85C
    • Weight: 2 kg / 4 lb

    NOTES:

    • Self-contained, does not require a ground plane
    • Specifications and prices are subject to change without notice
