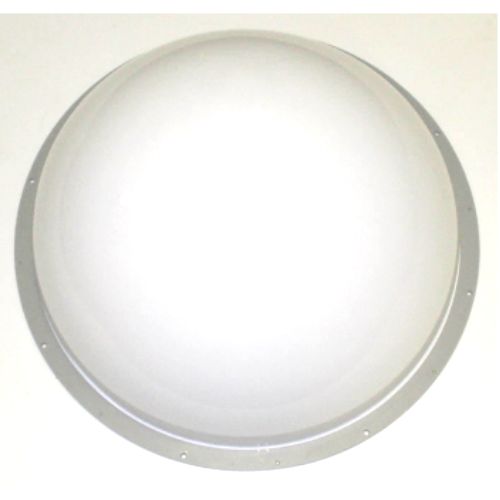

    UC-300-B5, UHF Satcom Antenna, CP Description

    Leadtime: 4 weeks ARO

    Antenna model UC-300-B5 is a lightweight, complete UHF Satcom antenna system. The polarization of this antenna is Circular (CP), intended for communications through satellites only. For dual and multi-purpose UHF Satcom applications, visit our custom antennas website at , or look at our other UHF Satcom product offerings at UHF SATCOM/LOS/DAMA/MUOS Antennas catergory within this store.


    • Operating Frequencies: 243-318 MHz
    • Polarization: Circular (CP)
    • Maximum Power: 100 Watts CW (Continuous operation)
    • Gain (peak): +6 dBic at zenith
    • Axial Ratio: 2 dB
    • Elevation Beamwidth (-3 dB): 95 degrees
    • Azimuthal Beamwidth: Omnidirectional
    • Nominal Impedance: 50 Ohms (RF), short circuit (DC)
    • Maximum VSWR: 1.5 (1.3 typical)
    • Connector Interface: Type N, female
    • Wind Survivability: 100 mph
    • Operating Temperature: -40C to +85C (-40F to 185F)
    • Dimensions: 20 cm (8 in) height x 43 cm (17 in) diameter
    • Weight: 5 kg (10 lbs)
    Availability, specifications & prices subject to change without notice
