SHF Flat Panel Surveillance Antenna
SHF Flat Panel Surveillance Antenna

SL-900A-B351, Linearly Polarized Surveillance Antenna, 2-16 GHz

Price: $2,088.22

Typical leadtime if item is not in stock: approx. 3-4 weeks (call for stock status)

    Quantity:

    Quantity

    		1-910+

     Price Each

    		$2,088.22$1,689.22

    EXPORT CONTROLS APPLICABLE
    Leadtime: 4 Weeks ARO


    TECHNICAL SPECIFICATIONS:
    • Frequency range: 2-16 GHz
    • Coverage: Broadside
    • Polarization: Linear, Vertical or Horizontal, depending on mounting orientation
    • Gain: -2 to +2 dBil
    • Nominal Impedance: 50 ohm (RF), Open Circuit (DC) for extra bandwidth*

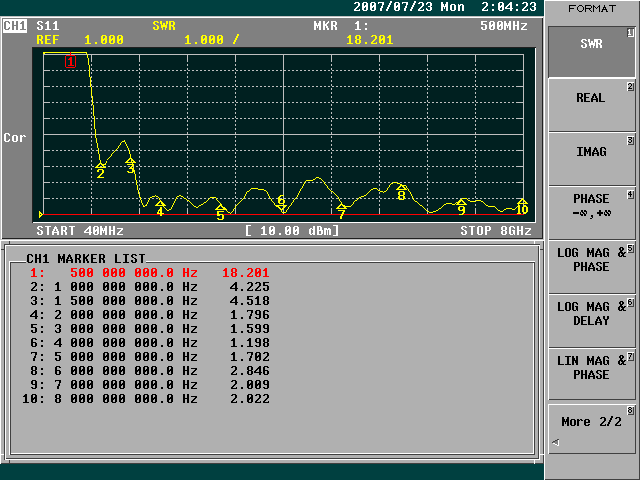

    • VSWR: 3.0 GRAPH
    • Connector: SMA, Female
    • Size: 10 cm (4") x 10 cm (4") x 1 cm (.4")

    NOTES:
    • Does not require a ground plane
    • * We can provide this antenna with a DC Short Circuit impedance to provide limited ESD protection


    Availability, specifications & prices subject to change without notice
