    ISM/LTE/Cellular-GNSS/GPS Diplexer description

    DPLU-1200-673 Diplexer, separates GNSS (Global Navigation Satellite System) or GPS (Global Positioning System) signals from Sub-GHz band signals, such as ISM (432/868/915 MHz), LTE (700 MHz) and Cellular (800/900 MHz), enabling a single coaxial cable to carry both signals, or permitting the use of a single wideband or multi-function antenna capable of supporting both spectra and services. Two Diplexers may be used at each end of a long, low-loss coaxial cable to transport both signals between two dedicated radios and antennas.

    Diplexers are bidirectional and linear. This means that the direction of a signal traversing it, transmit/outgoing or receive/incoming, are both supported simultaneously. Signals passing the device are not generally distorted, other than in their amplitude and phase, so long as the power levels are within the specified values.

    DPLU-1200-673 Technical Specifications DPLU-1200-673 Datasheet

    • Low Band: 0.30 - 1.0 GHz
    • High Band: 1.5 - 2.0 GHz
    • Insertion Loss: approx 1 dB
    • Nominal Impedance: 50 ohm (RF) IN/OUT
    • RF Power Handling: 1W (+30 dBm) Maximum

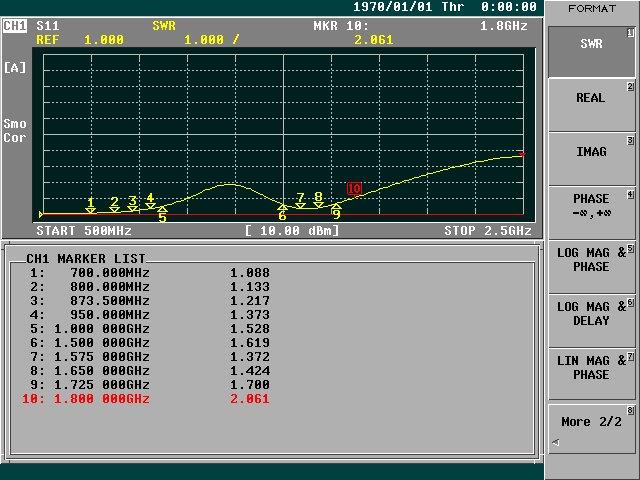

    • VSWR: under 2.0 all ports
    • Connectors: SMA Female on all ports
    • Dimensions: 34 mm (1.35") x 34 mm (1.35") x 13 mm (0.5"), including connectors
    • Mounting: SMA Connector
    • Operating Temperatures: -40°C to +85°C
    • Weight: 20 g / 0.7 oz
    • Color: Black/Gold


    • Specifications and prices are subject to change without notice
