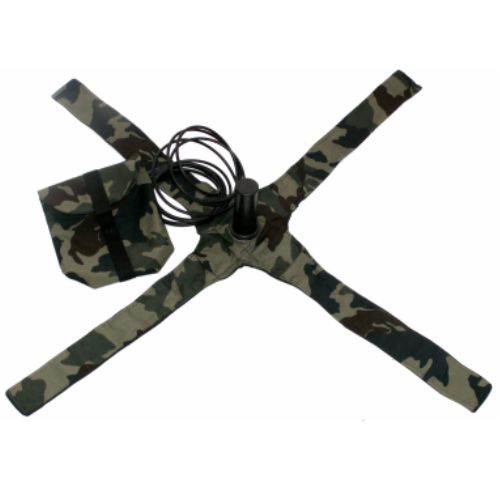

UL-3000-330 Full

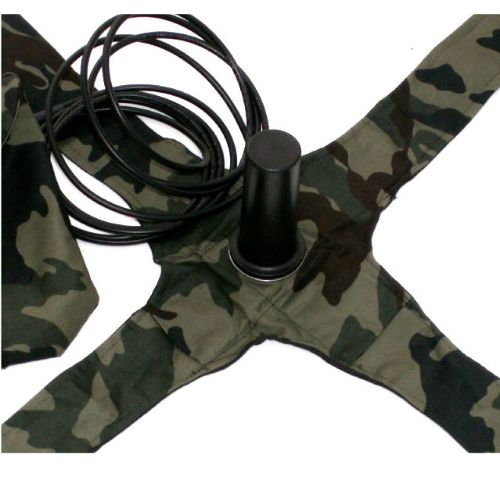

UL-3000-330 Full

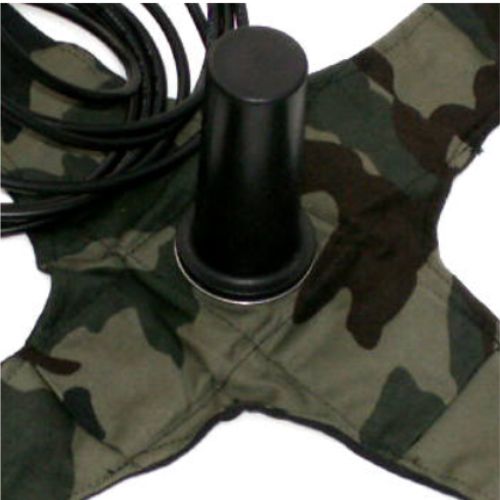

UL-3000-330 Zoom

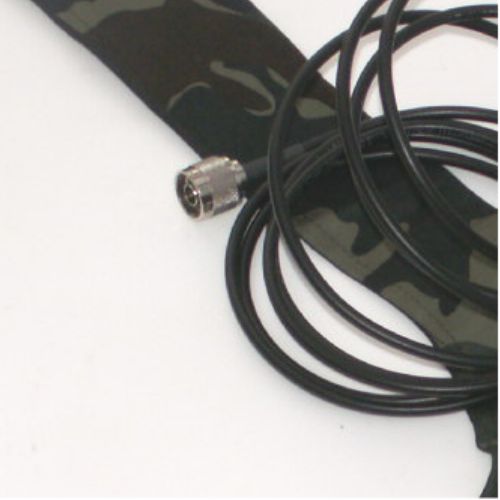

UL-3000-330 Connector Zoom

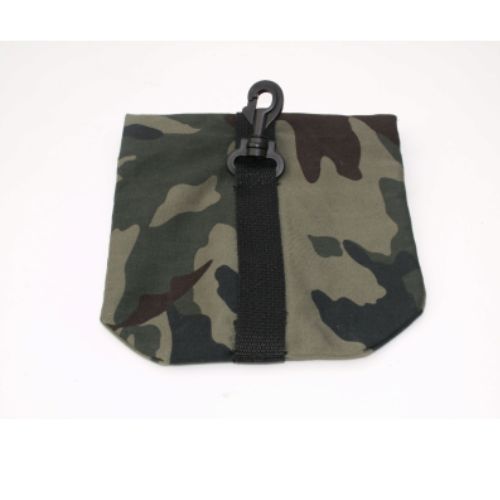

UL-3000-330 Accessory Back

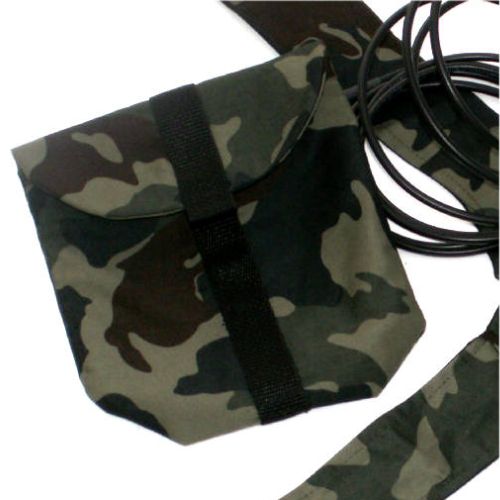

UL-3000-330 Accessory Front
UL-3000-330 Packing

UL-3000-330, Mini-UHF Portable SOTM kit (225-450 MHz)

Item #: UL-3000-330
Availability: Discontinued
Usually ships In Discontinued
Price: $422.19

    UL-3000-330, Mini-UHF Portable SOTM kit (225-450 MHz) [SOTM = SATCOM-on-the-move]

    Leadtime: Stock to 4 weeks ARO (After Receipt of Order)
    ITAR-USDOC-USDOS restricted item

    Click on graphs below to see full resolution image
    Military Mini-UHF Antenna VSWR Military Mini-UHF Antenna Gain

    Backpack/Belt clip-on, all-inclusive UHF antenna, designed for tactical and rapid deployment UHF SATCOM & LOS communications. Its lightweight (1 lb) and small form factor (pouch is approx. 8"x4"x4") keeps the operator burden to a minimum. Even while wearing gloves, deployment takes about 1 minute.

    For multi-mission applications, the radiating element assembly can be used interchangeably with any NMO style Mobile Radio Antenna in this catalog operating above 200 MHz. Custom alternative elements may be obtained in this store (see model UL-4000-319-CF), or from, to assemble a comprehensive and specialized, lightweight tactical mission kit. An NMO mount and a 10 ft length of waterproof, low-loss coaxial cable, terminated in an N Male connector are included in the UL-3000-330 kit.

    • Frequency range: 225-450 MHz (operates beyond 500 MHz)
    • Coverage: Omni-directional, low azimuthal ripple (1 dB)
    • Polarization: Linear, Vertical
    • Gain: -3 dBil averaged Gain Curve - PATTERN
    • Nominal Impedance: 50 ohm (RF), Open Circuit (DC) 1 kV isolation, radiating element grounded
    • Input Power: 50 Watts CW
    • VSWR: 3.0 GRAPH
    • Connector: N, Male
    • Dimensions:
      • Radiating Element Housing 3.8 cm (1.5") OD x 10.3 cm (4.05") h
      • Loaded Pouch 10 cm (4") OD x 20 cm (8") h
    • Element Mount: NMO connector (w/AS568B Dash Number 027 O-Ring)
    • Operating Temperatures: -40C to +85C
    • Shock: Operates after drop from 6 m/20 ft onto asphalt
    • Weight: 0.5 kg / 1 lb
    • Shipping Weight: 0.7 kg / 1.5 lbs

    Click here to see DATASHEET

    • Specifications and prices are subject to change without notice
    • Patent Pending

    Mini-UHF Antenna 3D CAD Files CAD Files available:
