High Gain WiFi Panel Antenna, +13 dBil x 90° Azimuth, VPOL
High Gain WiFi Panel Antenna, +13 dBil x 90° Azimuth, VPOL

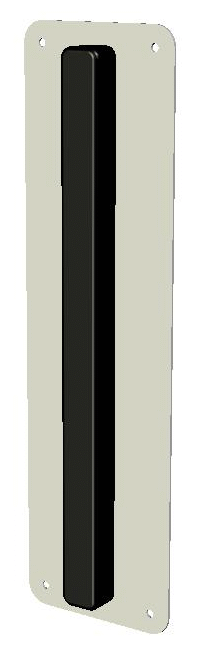

SL-400A-D651 WiFi Panel Antenna 2.4/5.75 GHz, +13 dBil x 90 °, Linear Polarized (VPOL), SMA Female

Item #: SL-400A-D651-SMAF
Availability: approx. 3-4 weeks
Usually ships In approx. 3-4 weeks
Price: $129.19

    Connector type/gender:

    Update price
    Quantity:

    Sector WiFi Panel Antenna description

    SL-400A-D651 WiFi Panel Antenna is a dual band high gain sector antenna. It simultaneously operates on 2.4 GHz and 5 GHz with gain of +12 dBil. It measures 36 cm/14" x 10 cm/4" x 4 cm/1.5". This antenna is intended for the extension of low power WiFi Routers and Wi-Fi Wireless Access Points, covering a 90° area

    Each internal radiating element comprising the antenna is DC shunted (short circuited), providing some protection from Electro-Static Discharge, as well as offering increased isolation from lower frequency signals, such as television and audio broadcast emissions.


    SL-400A-D651 Technical Specifications

    • Frequency range: 2400-2500 MHz and 5500-6000 MHz
    • Coverage: Unidirectional, Quadrant sector
    • Polarization: Linear, typically Vertical (VPOL)
    • Gain: +12 dBil
    • Nominal Impedance: 50 ohm (RF), Short Circuit (DC)
    • Input Power: 1 Watt CW
    • VSWR: 2.0
    • Connector: SMA, Female
    • Dimensions: 36 cm (14") x 10 cm (4") x 4 cm (1.5")
    • Mounting: 2 or 4 screws, size 4.5 mm / #8-32 screws
    • Operating Temperatures: -40C to +85C
    • Weight: 500 g / 1.0 lbs
    • Shipping Weight: 700 g / 1.5 lbs
    NOTES:
    • Specifications and prices are subject to change without notice

    Specifications, Availability and Prices are subject to change without notice
