UL-8501-151F Full
UL-8501-151F Full
UL-8501-151F Zoom

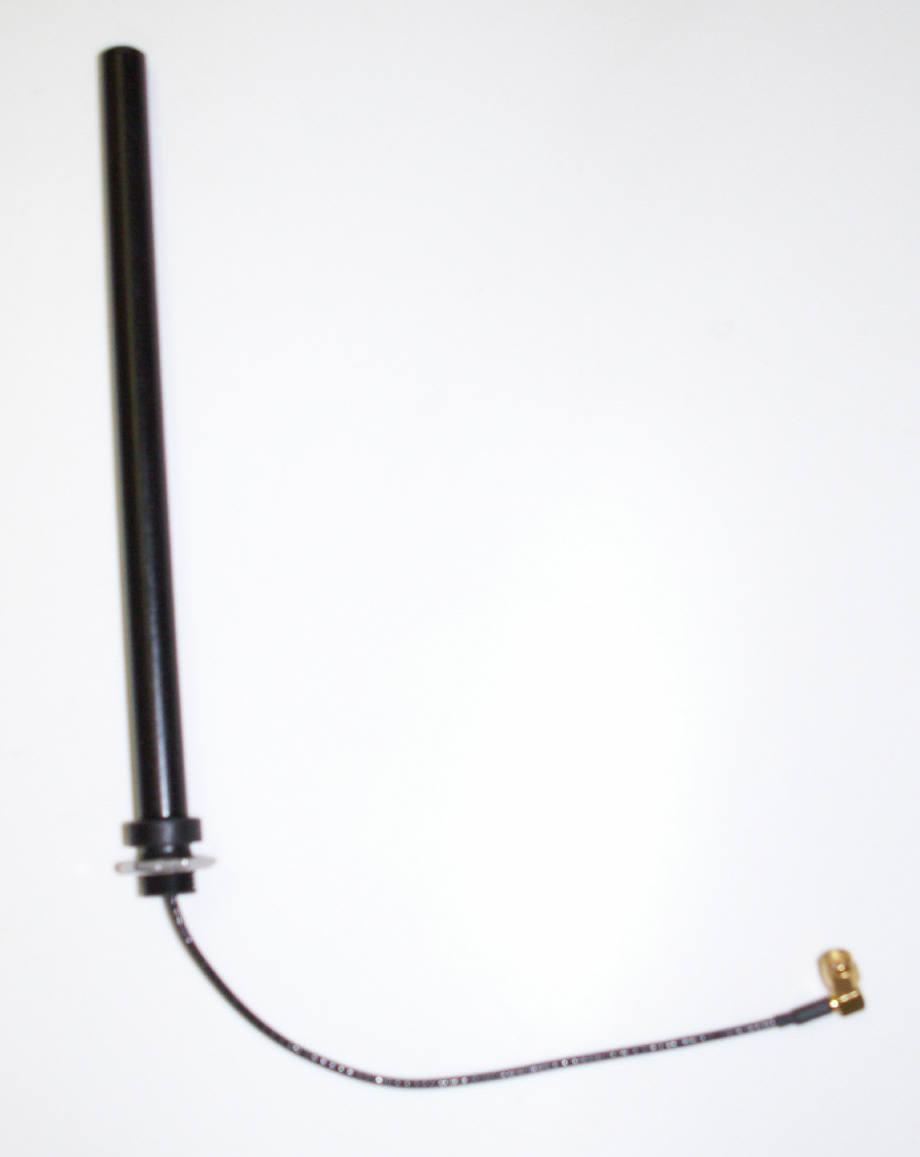

UL-8501-151F, 800-950 MHz Antenna

Item #: UL-8501-151F
Availability: approx. 2 weeks
Usually ships In approx. 2 weeks
Price: $56.64


    Quantity:


    Uses include: Ardis modem, Cellular phones, Cellular network telemetry/SCADA, automatic metering, ISM devices, 900 MHz communications, wireless LAN/MAN/WAN.

    Frequency: 800-950 MHz
    Coverage: Omni directional (azimuth)
    Polarization: Linear, Vertical
    Gain: +2 dBil
    Ground Plane: Requires no ground plane
    Nominal Impedance: 50 ohm (RF), Short Circuit (DC) for ESD protection (ESD = Electro-Static Discharge)
    VSWR: 2.0
    Dimensions: 21.6cm (8.5") H x 1.3cm (1/2") OD
    Connector: SMA, Male, Right Angle on RG316
    Mounting: Plastic, 9/16"-18 threaded, Black
    Special features: internal double balun provides stable radiation pattern
    For more technical information see Datasheet

    Specifications, Availability and Prices are subject to change without notice
