Home > ANTENNAS by Application > Terrestrial Data/Telemetry Antennas >






UL-6001-358 Full

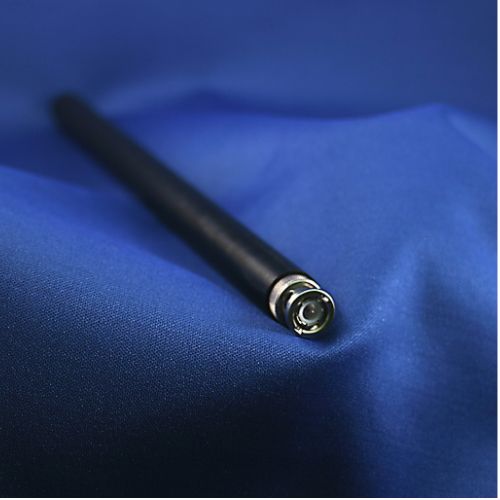

UL-6001-358 Full

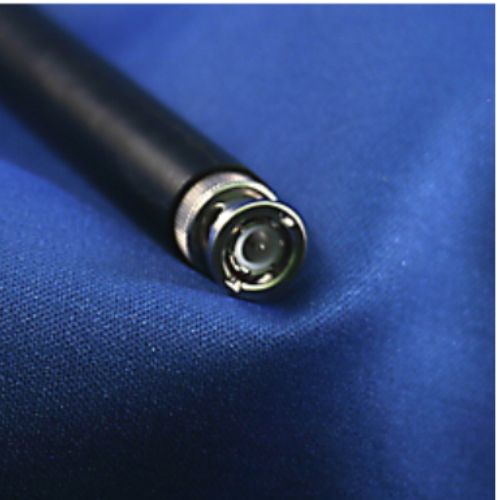

UL-6001-358 Zoom

UL-6001-358, 570-630 MHz Telemetry antenna

Item #: UL-6001-358
Availability: approx. 2 weeks
Usually ships In approx. 2 weeks
Price: $54.64


    Quantity:


    Uses: Medical telemetry (608-614 MHz), Military telemetry, UHF Television



    Frequency: 570-630 MHz
    Coverage: Omnidirectional (azimuth)
    Polarization: Linear, Vertical
    Gain: +2 dBil
    Ground Plane: Requires no ground plane
    Nominal Impedance: 50 ohm (RF), Short Circuit (DC) for ESD protection (ESD = Electro-Static Discharge)
    VSWR: 2.0
    Dimensions: 25.4cm (10") H x 1.6cm (0.625") OD
    Connector: BNC, Male
    Mounting: direct mount
    Special features: internal double balun provides stable radiation pattern

    Specifications, Availability and Prices are subject to change without notice
