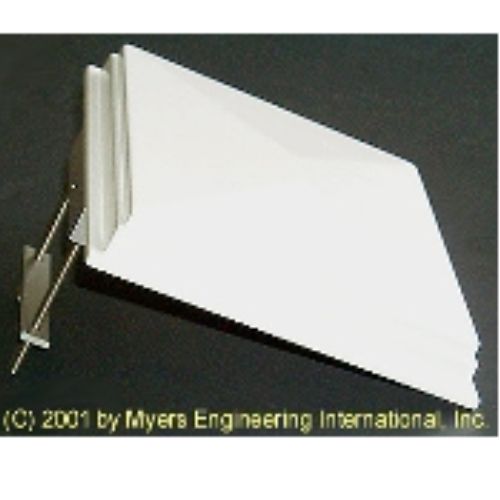

UL-1904-143S Full

UL-1904-143 US PCS Panel antenna, SMA Female

Item #: UL-1904-143-SMAF
Availability: approx. 2 weeks
Usually ships In approx. 2 weeks
Price: $97.77

    Connector type/gender:

    Update price
    Quantity:

    The UL-1904-143 is a monoband (single band) US PCS (1850-1990 MHz) Panel antenna. It measures 20.5 cm/8" x 18 cm/7" x 3.5 cm/1.4". This antenna is intended for wireless high-speed modems and mobile/cellular phones operating specifically within the US PCS band.

    Each individual element within the UL-1904-143 antenna is shunted, providing increased isolation from lower frequency signals, such as television and audio broadcast emissions.

    SPECIFICATIONS:
    • Frequency range: 1850-1990 MHz (GSM/CDMA/PCS 1900)
    • Coverage: Unidirectional
    • Polarization: Linear, typically Vertical
    • Gain: +13 dBil
    • Nominal Impedance: 50 ohm (RF), Short Circuit (DC)
    • Input Power: 10 Watt CW
    • VSWR: 2.0 GRAPH
    • Connector: SMA, Female
    • Dimensions: 20.5 cm (8") x 18 cm (7") x 3.5 cm (1.4")
    • Mounting: #10-32 screws (2 or 4)
    • Operating Temperatures: -40C to +85C
    • Weight: 250 g / 0.5 lbs
    • Shipping Weight: 300 g / 0.6 lbs


    NOTES:
    • Specifications and prices are subject to change without notice

    Specifications, Availability and Prices are subject to change without notice
