UL-3001-340SB Full View
UL-3001-340SB Full View

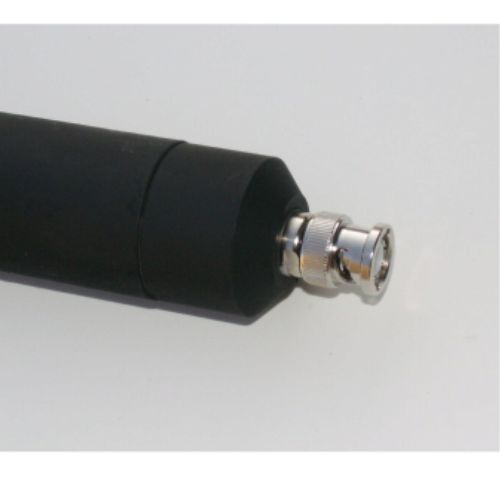

UL-3001-343SB Zoom View

UL-3001-340-CF, Rugged, Portable UHF Antenna, Custom Frequency (200-800 MHz)

Item #: UL-3001-340-CF-NM
Availability: Stocked & Customized
Usually ships In 1-7 days
Price: $267.04

    Enter desired single center frequency within the
    range of 200-800 MHz: *
    Connector type/gender:
    Coaxial Cable:
    Additional Options:
    Accessories:

    Update price
    Quantity:

      Quantity Count

      Price Each

    1-24$267.04
    25-99$222.53
    100-249$198.98
    250+$177.49


    UL-3001-340-CF, 13" Rugged, UHF, Custom Frequency (factory tuned), Portable Antenna

    Leadtime: 2 weeks ARO

    This portable antenna was designed for applications where a simple, lightweight, very rugged, compact UHF antenna is needed. This product can mount directly onto the connector of a radio set. Three versions are offered to accommodate the various portable radios existing in the field. The various versions of the UL-3001-340-CF antenna differ only by their connectors: N, BNC and TNC.

    This antenna provides a DC short circuit to help protect radio electronics connected to it from electrostatic discharge. At its UHF passband, the nominal impedance is 50 ohm, with a maximum VSWR of 2.




    TECHNICAL SPECIFICATIONS
    • Frequency range: custom tuned within 200-800 MHz
    • Bandwidth: 10% at 200 MHz
    • Coverage: Omni-directional, low azimuthal ripple (1 dB)
    • Polarization: Linear, Vertical
    • Peak Gain: +1 dBil
    • Nominal Impedance: 50 ohm (RF), Short Circuit (DC)
    • Input Power: 50 Watts CW
    • VSWR: 3.0 over 90% of band GRAPH
    • Connector: Please select
    • Dimensions: 3.2 cm (1.25") OD x 33 cm (13") L
    • Mounting: direct, connector, we recommend using short cable
    • Operating Temperatures: -40C to +85C
    • Weight: 0.5 kg / 1 lb
    • Shipping Weight: 0.6 kg / 1.2 lbs

    NOTES:
    • Self-contained, does not require a ground plane
    • Specifications and prices are subject to change without notice

    Specifications, Availability and Prices are subject to change without notice
