VL-9801-383, 88-108 MHz Omni FM Band Antenna

Item #: VL-9801-383
Availability: Stocked & Customized
Usually ships In 1-7 days
Price: $201.22


    Quantity:

      Quantity Count

      Price Each

    1-9$201.22
    10-99$181.35
    100+$162.55

    The VL-9801-383 is an omnidirectional antenna covering the entire VHF FM Broadcast Band (88-108 MHz). The internal radiating structure is complementary and broadband. No ground plane is needed or required for normal operation.

    The antenna is housed in a Fiberglass enclosure making it rugged and tolerant to challenging environments. Internally, the feedpoint is DC shunted (short circuit) and electrically grounded (if mounted onto a grounded mast/structure), offering limited electrostatic protection to equipment connected to the antenna. NOTE: due to the possible differential of potentials between the antenna ground and the shack's ground, it is always good practice to place other localized (close to the equipment) ESD protection means.

    • Frequency: 88-108 MHz
    • Coverage: Omnidirectional (azimuth)
    • Polarization: Linear, Vertical
    • Gain: +1 dBil
    • Ground Plane: Requires no ground plane
    • Nominal Impedance: 50 ohm (RF), Short Circuit (DC) for ESD protection (ESD = Electro-Static Discharge)

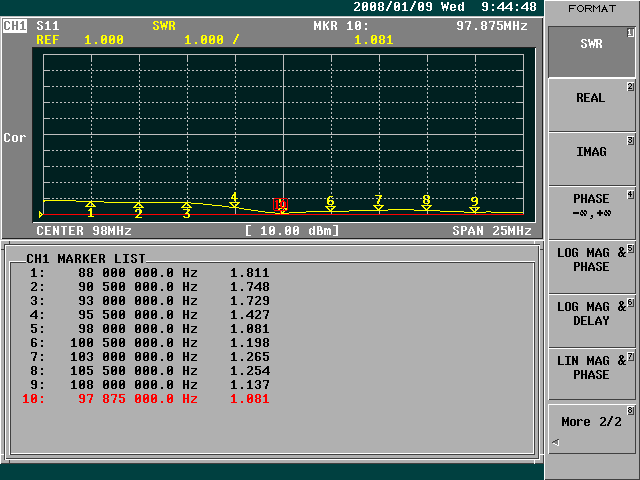

    • VSWR: 2.0 maximum GRAPH
    • Power Handling: 50 Watts CW (Continuous)
    • Dimensions: 160 cm (63") H x 3 cm (1") OD
    • Connector: Type N, Female, at bottom center of antenna
    • Mounting: Clamp to bottom aluminum pipe (ACC-0007 - ACC-0009)

    NOTE: Specifications and prices are subject to change without notice
