Mini-UHF SATCOM Antenna, X-Wing

Antenna model UC-3004-381 is a lightweight, tactical, compact UHF Satcom antenna system. The polarization of this antenna is Circular (CP), intended primarily for communications through satellites. This antenna is approximately half the size of a normal "X-Wing" antenna, but offers comparable gain to its full size counterpart. Its half size dimensions make it ideal for tactical applications, where low observability is important. It will also serve to spoof opposing forces and intelligence efforts into believing traffic is occurring at higher frequencies due to the smaller size antenna.

The design of this Mini-UHF X-Wing Antenna is modular, to enable you to use one antenna in multiple ways. For example, mount it on a vehicle, using the High Gain Mount, ACC-0005 and either a magnet (ACC-0003), a suction cup (ACC-0002), or a standard X-Wing bolt mount (ACC-0008, compatible with AV 2090-4 hole pattern), for Satcom-On-The-Move while driving. Once you reach your target, you may remove the antenna from the High Gain Mount and attach it to your radio with a Coaxial Cable Assembly (more cable choices) for portable use. We have introduced a lighter, less observable version of this antenna for tactical, on-foot applications, which fits in a 4" (10 cm) x 4" (10 cm) pouch (see UC-3004-481 Tacsat Antenna).

Technical Specifications:

• Operating Frequencies: 243-318 MHz
• Polarization: Circular (CP) [models -381R_ are RHCP]
• Axial Ratio: 2 dB
• Maximum Power: 50 Watts CW (Continuous operation)
• Gain (peak):
  • Mini (basic) version, directly mounted on connector: -4 dBic
  • Mini (basic) version, on High Gain mount ACC-0005, +1 dBic*
    Elevation pattern (Basic version)
  • "E" (Extended) version, directly mounted on connector: 0 dBic
  • "E" (Extended) version, on High Gain mount ACC-0005, +4 dBic*

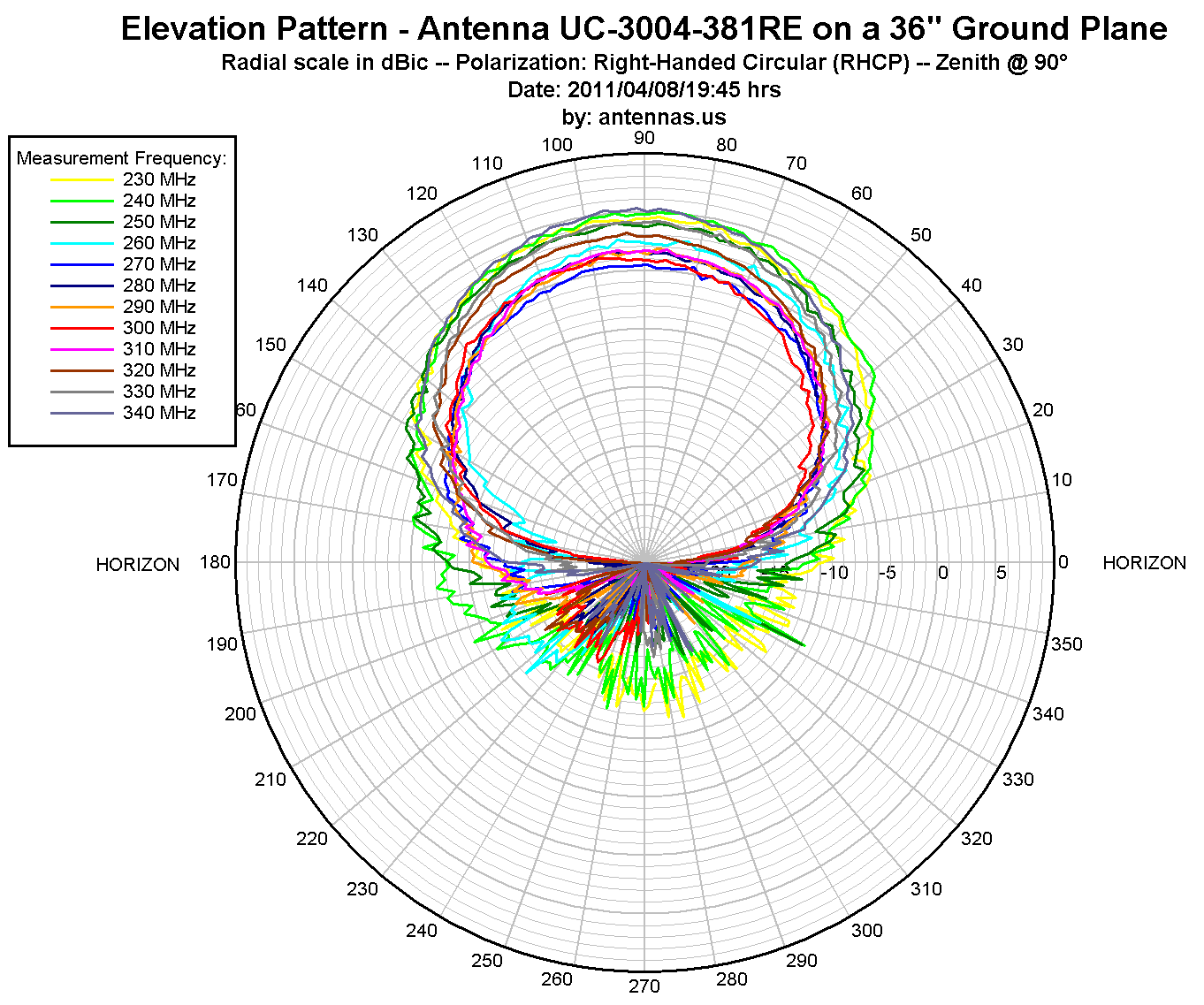

    Elevation pattern (Extended version)
  • "F" (Full) version, directly mounted on connector: +2 dBic
  • "F" (Full) version, on High Gain mount ACC-0005, +6 dBic*

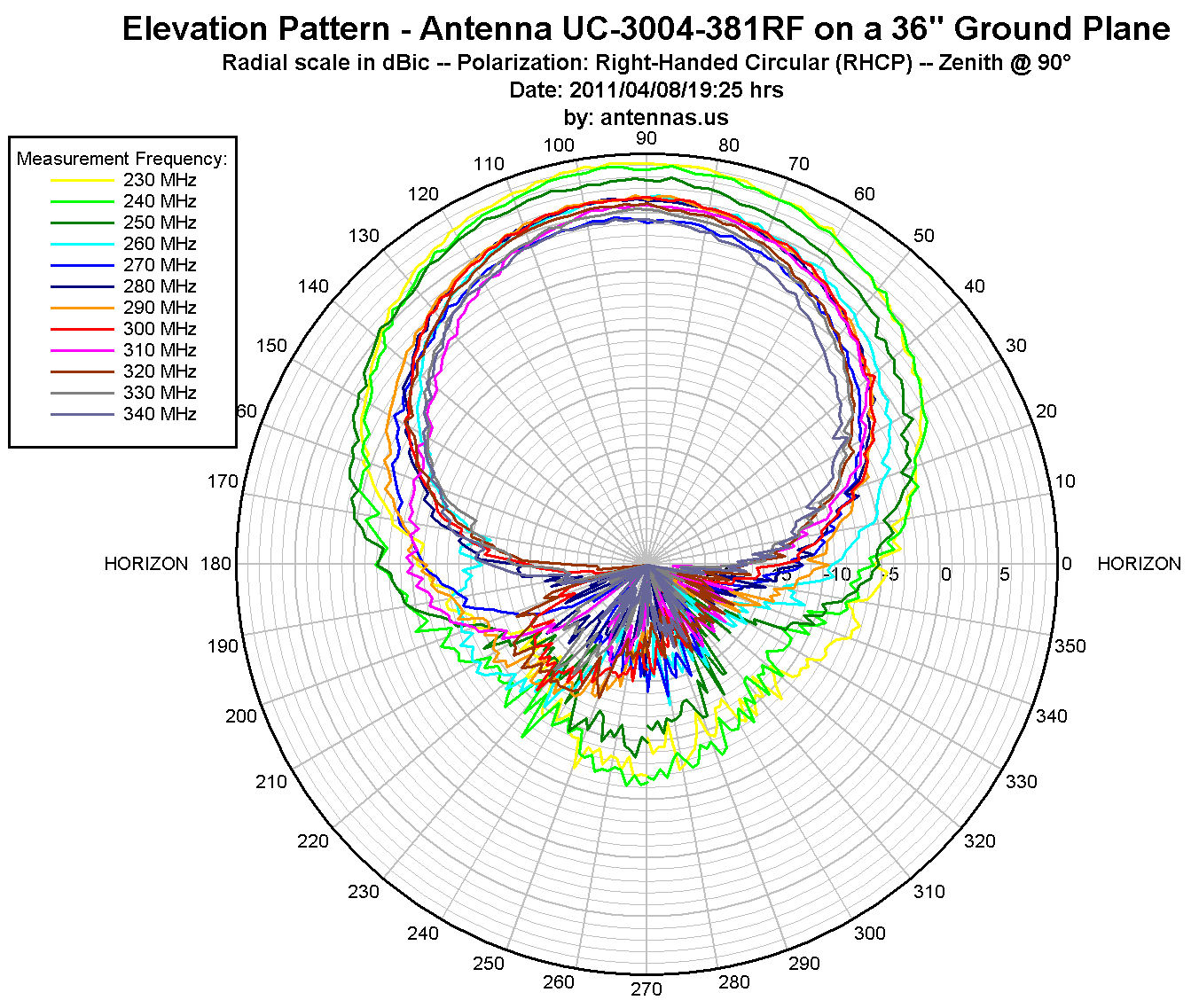

    Elevation pattern (Full version)
• Azimuthal Coverage: Omnidirectional
• Nominal Impedance: 50 Ohms (RF), short circuit (DC)
• Maximum VSWR: 3.0 (under 2.5 typical)
  Graphs:

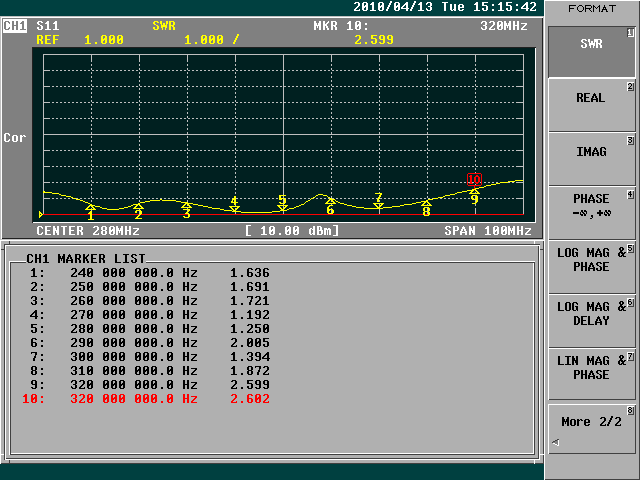

  • UC-3004-381R (Basic)

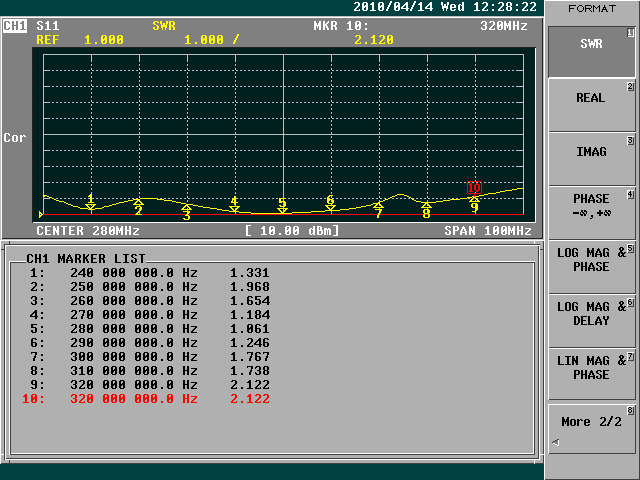

  • UC-3004-381RE (Extended)

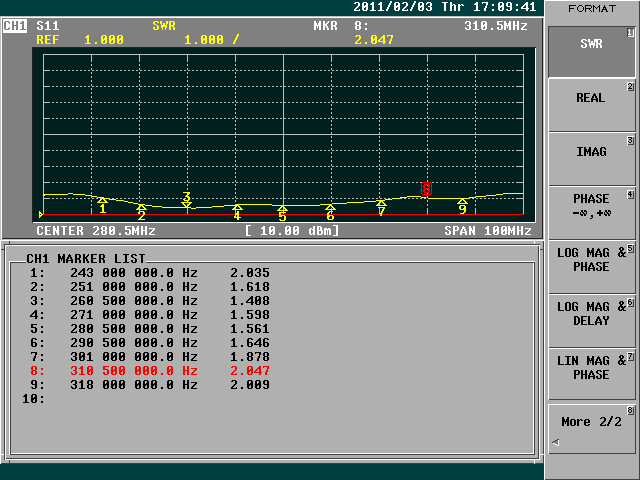

  • UC-3004-381RF (Full)
• Connector Interface: Type N, female
• Operating Temperature: -40C to +85C (-40F to 185F)
• Dimensions:
  • Mini (basic) version: 17 cm (6.5 in) x 17 cm (6.5 in) x 2 cm (3/4 in), not including connector
    23 cm (9 in) tip-tip, can fit in a 18 cm x 18 cm (7 in x 7 in) pouch (not supplied)
  • "E" (Extended) version: 23 cm (9 in) x 23 cm (9 in) x 2 cm (3/4 in), not including connector
    30 cm (12 in) tip-tip, can fit in a 25 cm x 25 cm (10 in x 10 in) pouch (not supplied)
  • "F" (Full) version: 36 cm (14 in) x 36 cm (14 in) x 2 cm (3/4 in), not including connector
    48 cm (19 in) tip-tip, can fit in a 38 cm x 38 cm (15 in x 15 in) pouch (not supplied)
• Weight: 0.5 kg (1 lbs)

This product is compatible with the following Antenna Accessories:

• 12 cm (5") Magnetic Base
• 7 cm (3") Magnetic Base
• 9 cm (3.5") Suction Cup

Recommended Cable Assemblies

• LMR240 - use for cables longer than 10 meters (30 ft)
• LMR195 - use for cables shorter than 10 meters (30 ft)
