Leadtime: 1 Week ARO
The UL-190A-B376 is a broadband directional antenna, providing continuous communications coverage across the spectrum of 750-3000 MHz. Its many applications include rapid deployment of emergency UHF communications, Hopping or Simultaneous Multiband Wireless LAN/MAN/WAN, military LOS operations, frequency hopping and jamming sources, spectrum monitoring and management, surveillance, radio scanners, global and wide area SCADA systems and metrology.
You can now use a single, convenient antenna to cover all the popular spectra and applications including:
- Multi-band Cellular Phone/Mobile Phone (all standards: EU & US GSM, AMPS, CDMA, TDMA, UMTS, iDEN, Video Broadcast; 2G, 3G and 4G)
- Wi-Fi, WiMax, WLAN/MAN/WAN, 802.11/b/g (2400-2485 MHz)
- 800 MHz wireless MODEMs
- 700 MHz APCO and 800 MHz Re-banding
- 900 MHz MODEMs (ISM 902-928 MHz)
- Telemetry (800, 900, 1400, 2400 MHz)
- Military LOS and SATCOM (1750-1850 MHz)
- Licensed Broadband MODEMs (2.3, 2.5-2.8 GHz)
TECHNICAL SPECIFICATIONS:
- Frequency range: 750-2700 MHz (useable 700-3000 MHz)
- Coverage: Directional
- Polarization: Linear, typically Vertical
- Peak Gain: +7 dBil
- Nominal Impedance: 50 ohm (RF), Short Circuit at DC
- Input Power: 50 Watts CW

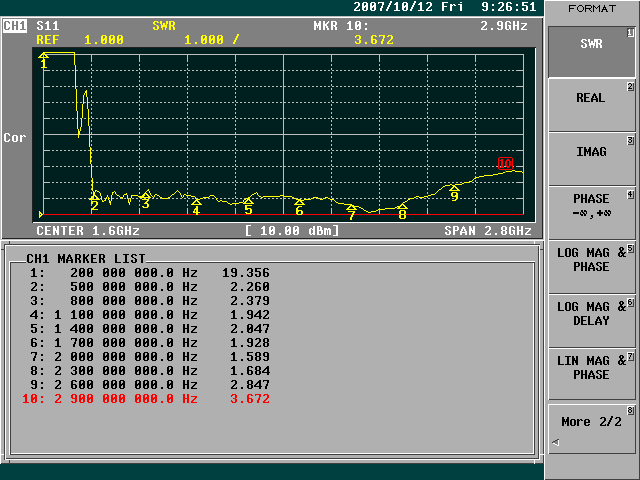

- VSWR: 3.0 GRAPH
- Connector: SMA, Female
- Dimensions: 51 cm (20") L x 25 cm (10") H x 1 cm (0.4") W
- Mounting: 4 screws, 1/4"-20
- Operating Temperatures: -40°C to +85°C
- Weight: 1.0 kg / 2.3 lbs
- Shipping Weight: 1.5 kg / 3.0 lbs
NOTES:
- Does not require a ground plane
For more technical information see Datasheet
|
