SL-5001-B357 Broadband Omni antenna, 3.0-8.0 GHz, SMA Female

SHF Broadband Omnidirectional Antenna, 3-8 GHz

SHF Omni Antenna description

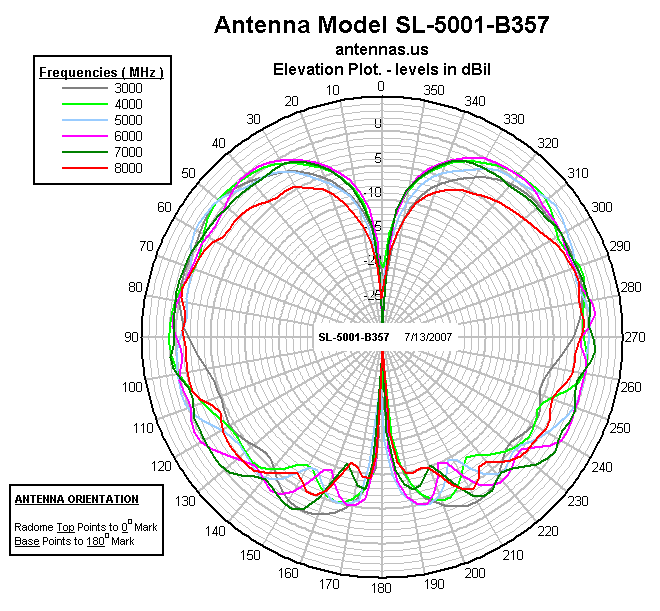

The SL-5001-B357 is an SHF broadband omni-directional antenna for high bandwidth telemetry, LAN/WAN networking, low microwaves surveillance applications, UAV comms, etc. It measures 4 cm/1.5" OD x 11 cm/4.5" H and is designed to conveniently mount onto any structure, by means of a single 1/4" (6.4 mm) hole. Its internal radiating structure is self-contained and operates well with or without a ground plane, providing an all-around (omni) coverage with a low azimuthal ripple. Its elevation pattern is frequency stable across the spectrum for the low dispersion of wide bandwidth emissions.

SL-5001-B357 Technical Specifications

• Frequency range: 3.0-8.0 GHz
• Coverage: Omnidirectional
• Polarization: Linear, typically Vertical
• Gain: 0 dBil (free space) / +3 dBil (when effectively installed over a ground plane)
• Nominal Impedance: 50 ohm (RF)
• Input Power: 10 Watt CW

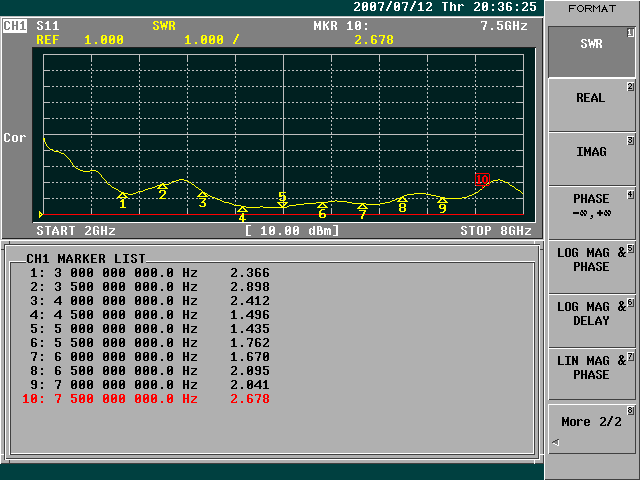

• VSWR: under 3.0 over more than 90% of its range GRAPH
• Connector: SMA, Female
• Dimensions:
  • Housing 4 cm (1.5") OD x 11 cm (4.5") h
  • Bottom flange 5 cm (2") OD x 13 mm (0.5") h
• Mounting: 1 screw, 1/4"-20
• Operating Temperatures: -40C to +85C
• Weight: 250 g / 0.5 lbs
• Shipping Weight: 300 g / 0.6 lbs

• Does not require a ground plane

This product is compatible with the following Antenna Accessories:

• 12 cm (5") Magnetic Base
• 7 cm (3") Magnetic Base
• 9 cm (3.5") Suction Cup

Recommended Cable Assemblies

• LMR240 - use for cables longer than 1 meter (3 ft)
• LMR195 - use for cables shorter than 1 meter (3 ft)
