    The UC-1574-341RM is a Quadrifilar Helix antenna (4 cm/1.5" OD x 11 cm/4.5" H) designed for use with GPS L1, 1.5754 GHz receivers and systems.

    SPECIFICATIONS:
    • Frequency range: 1565-1585 MHz
    • Coverage: Hemispherical
    • Polarization: Right-Handed, Circular (AR 3 dB)
    • Gain: +3 dBic
    • Nominal Impedance: 50 ohm (RF)
    • Input Power: 1 Watt CW

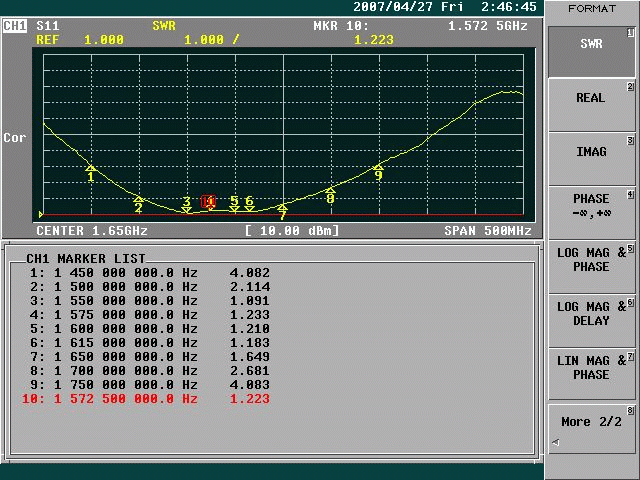

    • VSWR: 2.0 GRAPH
    • Connector: MMCX, Male on a low loss, 24" Flexible RG-405 cable
    • Dimensions:
      • Housing 4 cm (1.5") OD x 11 cm (4.5") h
      • Bottom flange 5 cm (2") OD x 13 mm (0.5") h
    • Mounting: 1 screw, 1/4"-20
    • Operating Temperatures: -40C to +85C
    • Weight: 250 g / 0.5 lbs
    • Shipping Weight: 300 g / 0.6 lbs

    Click here to see DATASHEET

    NOTES:
    • Does not require a ground plane
    • Specifications and prices are subject to change without notice
