UL-4150-315, 400-430 MHz Flexible whip antenna
Item #: UL-4150-315
Availability: approx. 2 weeks
Usually ships In approx. 2 weeks

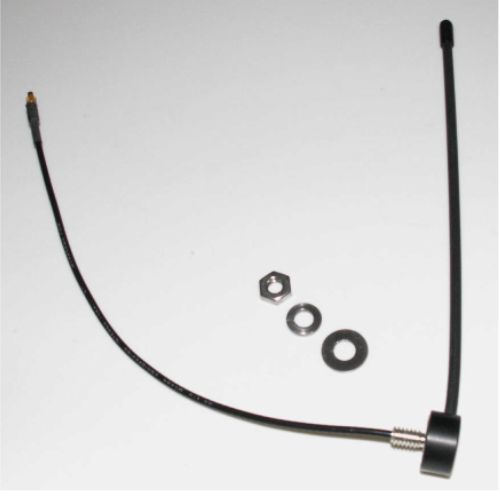

Flexible whip antenna on threaded mount for portable and fixed products with MMCX Male connector. Ground Strip not included.
Frequency: 400-430 MHz
Coverage: Omni directional (azimuth)
Polarization: Linear
Gain: +1 dBil
Ground Plane: Requires a ground plane, or use optional Ground Strip (GS model)
Nominal Impedance: 50 ohm (RF), Open Circuit (DC)
VSWR: 2.0
Dimensions: 19 cm (7.5") H

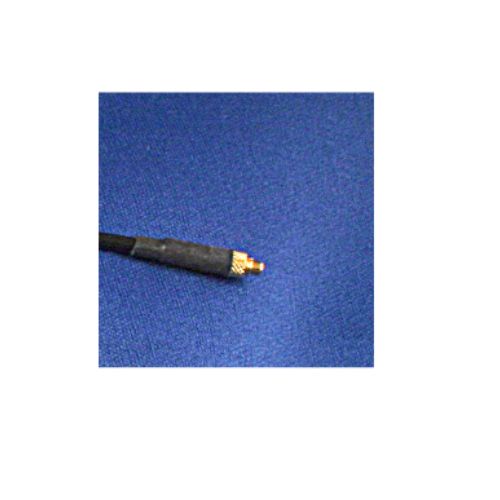

Connector: MMCX, Male, on RG316
Mounting: 1/4"-20 threaded, Nickel-Tin plated Brass

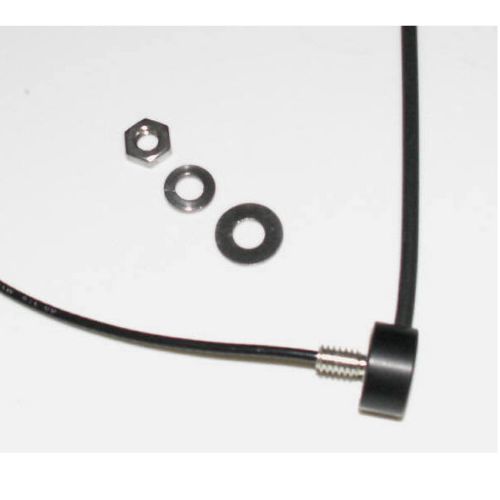

Hardware: Flat Washer, Lock Washer and Nut, all included
For more technical information see
Datasheet
Flexible whip antenna on threaded mount for portable and fixed products with MMCX Male connector. Ground Strip not included.
Frequency: 400-430 MHz
Coverage: Omni directional (azimuth)
Polarization: Linear
Gain: +1 dBil
Ground Plane: Requires a ground plane, or use optional Ground Strip (GS model)
Nominal Impedance: 50 ohm (RF), Open Circuit (DC)
VSWR: 2.0
Dimensions: 19 cm (7.5") H
Connector: MMCX, Male, on RG316
Mounting: 1/4"-20 threaded, Nickel-Tin plated Brass
Hardware: Flat Washer, Lock Washer and Nut, all included
For more technical information see
Datasheet
Specifications, Availability and Prices are subject to change without notice
